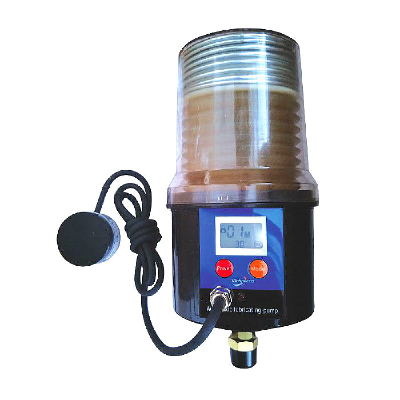

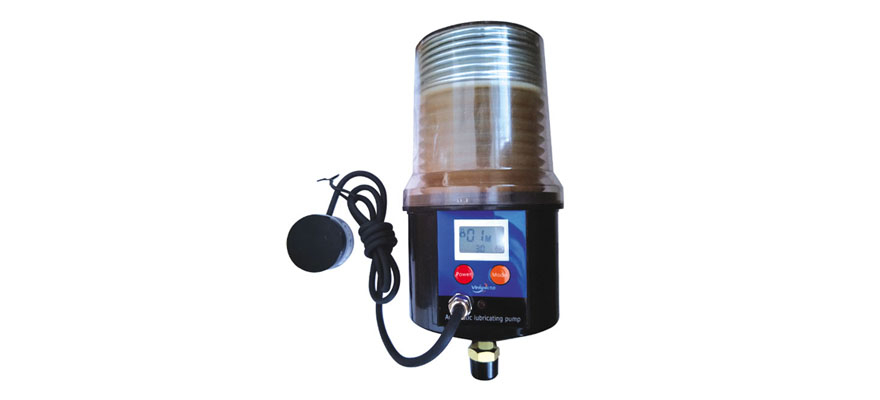

Induction type automatic lubrication pump

Induction type automatic lubrication pump

  • Min.Order Quantity: 10 Cartons
  • Supply Ability: 99999 Cartons per Year
  • Port: China port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Carton/Cartons
| Factory
Experience:2012-08-23
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China Shandong Jinan
  • Brand Name:  D XunTong
  • Model Number:  VRH300A
  • Weight: 1.000 kg

Overview: The advantage of the VRH300A is that it can be "synchronized" with the equipment to provide automatic lubrication for infrequent or intermittent use of machinery, thus avoiding excessive lubrication problems. As long as the machine continues to operate, the lubrication pump will periodically inject the preset amount of lubricant into the machine. When the equipment stops working, it stops the injection and automatically enters the "standby mode". When the machine equipment is running normally, the lubrication pump will automatically "wake up" and re-enter the preset operation mode.

Product advantages :

Configure the vibration sensor, and equipment operation "synchronization";

Vibration sensitivity manually adjustable to adapt to different equipment;

Strong arc magnetic chuck, higher adsorption capacity;

Mechatronics, accurate and reliable, on demand lubrication;

Transparent cover, easy to observe, management;

Large volume, low maintenance frequency;

Battery life up to 2 years (lithium battery pack);

Easy to use, adjust the lubrication pump, the vibration sensor to the device can be attached to the shell;


  • Place of Origin:  China Shandong Jinan
  • Brand Name:  D XunTong
  • Model Number:  VRH300A
  • Weight: 1.000 kg

Product specifications

  Product capacity: 300cc

Working pressure: 10 bar

Dimensions: 107 * 215

Adjustment period: 0.5-12 months

Use temperature: -15 ~ 50

Power supply voltage: 4.5V

Single oil: 0.56cc / stroke

With grease range: NLGI 1-2 #

Sensitive adjustment: 0.5mm / s

Oil Weight: 1300g

Cable length: 1 meter

Cycle setting table

Oilingcycle setting(Month)

Oilingintervaltime

(Hours)

Oilpackcapacity

(CC)

singleinjection rate(CC)

daily oiling

(CC)

Monthly oiling(CC)

0.5

0.7

300

0.56

20

600

1

1.3

10

300

2

2.7

5

150

3

4

3.33

100

4

5.3

2.5

75

5

6.7

2

60

6

8

1.67

50

7

9.3

1.43

42.9

8

10.7

1.25

37.5

9

12

1.11

33.3

10

13.3

1

30

11

14.7

0.91

27.3

12

16

0.83

25

Applicable machinery:

Equipment that is often downloaded;

Often oiled but not easy to fill the oil equipment;

Need to stop after the equipment to fill the oil;

Need to grease all the industrial bearings.

Application Industry:

      Automotive, cement, energy industry (thermal power, petrochemical)

Chemical, food / beverage, dairy processing, mining

Pulp and papermaking, mining, steel, public equipment
