- Place of Origin: China 's Jinan City, Shandong Province on the flyover area LishanNorthRoad International Hardware Business Industrial Park Nor
- Brand Name: D XunTong
- Model Number: VZD300
- Weight: 1.500 kg

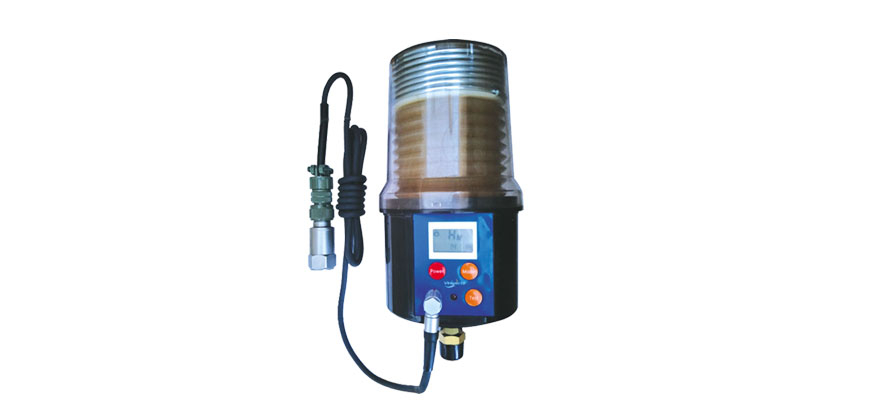

Digital multi-function pump is our company in accordance with the characteristics of industrial and mining equipment operation, creative research and development of a device online point patrol instrument, automatic lubrication, vibration measurement, temperature measurement in one. It can greatly reduce the labor intensity of equipment inspection staff, and is a basic tool to realize the construction of intelligent factories. And has obtained national invention patents (patent number: ZL 201520838202.3).
Digital production type multi-function lubrication pump and V-Smart software constitute the basic data acquisition system of factory condition monitoring, which can be configured with different sizes, and is a good helper for factory prediction maintenance and fine management.
Product characteristics
Battery powered
Automatic lubrication
Vibration measurement
temperature measurement
telecommunications
Unattended
Long standby
Mass storage
Low battery alarm
Motor fault alarm
Automatic preservation of measurement data
LCD LCD digital display
The composite probe integrates lubrication, filling,
vibration measurement and temperature measurement
- Place of Origin: China 's Jinan City, Shandong Province on the flyover area LishanNorthRoad International Hardware Business Industrial Park Nor
- Brand Name: D XunTong
- Model Number: VZD300
- Weight: 1.500 kg
VFH300 technical indicators and configuration
Pump capacity: 300cc
Working pressure: 15bar
Size: 107*215mm
Grease label: 1#, 2#
Lubrication cycle: 0.5-12 months
Ambient temperature: -20 - 50
Oiling quantity: 0.56cc/ stroke
Sensor input: IEPE accelerometer
Measuring range:
Range of acceleration measurement 0.1~199.9m/s2
Range of speed measurement 0.1~199.9m/s
Range of displacement measurement 0.001~1.999mm
Measuring accuracy: 5%
Range of temperature: -40 - 125 DEG C
Power supply: 4.5V battery pack (can be customized power supply mode)
Communication frequency: 2.4G
Mode of communication: wireless WiFi
Communication distance: more than 3 meters
Wireless wakeup mode: Manual
Installation: Remote
Installation distance: 3M
VZT300 standard configuration: host, sensor, sensor, magnetic base, filling head, remote installation attachment, tubing, packing box
