- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Place of Origin: Shandong
- Brand Name: D XunTong
- Model Number: VRH300
- Weight: 1.200 kg

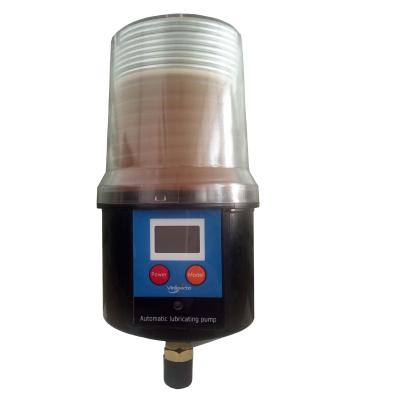

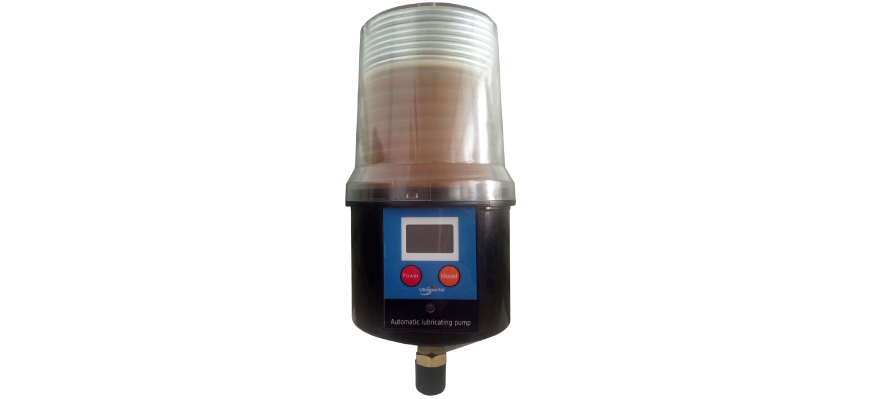

VRH300 is a smart independent automatic lubrication pump, its compact structural design will be discrete industrial equipment, automatic lubrication into reality.
Principle: The machine uses the "pump" principle of operation, according to the microprocessor in the established time program to run a small geared motor, driven in the pump inside the cam up to promote the hollow piston movement, through the vertical hollow piston inhalation, Grease in container.
The device contains a vertical plunger pump, a motor / gear set and a microprocessor control system that allows high pressure operation. Can set 13 dose frequency: 1-12 months and half a month. The easy-to-read LCD provides all the necessary information for setting up operation and status monitoring.
According to different circumstances combined into an effective automatic lubrication system, the precise grease will be added to the key parts of the equipment, they can be installed in any dangerous area, the consumption of less oil, and can reduce the need for lubrication and downtime inspection time, The use of smart grease in high temperature, humid and highly polluted and hazardous environments is ideal.
Comparative advantage
◆ safe and reliable .................. instead of artificial fat in high temperature, low temperature, dangerous, pollution, high altitude environment risk.
◆ energy conservation .................. set fat, precise fat, to avoid man-made more waste, saving more than 100%.
◆fine management ................ equipment management, reduce labor intensity, increase work efficiency, improve the level of automation.
◆ extend the working life of the equipment .......... to avoid people wrong, leak and less caused by mechanical failure, to ensure the effective lubrication of equipment.
- Place of Origin: Shandong
- Brand Name: D XunTong
- Model Number: VRH300
- Weight: 1.200 kg
Oilingcyclesettin(month) | Oilintervaltime (hour) | Oilcapacity (CC) | singleinjectionamount; (CC) | dailyoilinjection rate; (CC) | monthlyoilingcapacity; (CC) |
0.5 | 0.7 | 300 | 0.56 | 20 | 600 |
1 | 1.3 | 10 | 300 | ||
2 | 2.7 | 5 | 150 | ||
3 | 4 | 3.33 | 100 | ||
4 | 5.3 | 2.5 | 75 | ||
5 | 6.7 | 2 | 60 | ||
6 | 8 | 1.67 | 50 | ||
7 | 9.3 | 1.43 | 42.9 | ||
8 | 10.7 | 1.25 | 37.5 | ||
9 | 12 | 1.11 | 33.3 | ||
10 | 13.3 | 1 | 30 | ||
11 | 14.7 | 0.91 | 27.3 | ||
12 | 16 | 0.83 | 25 |
Applicable scope:
Applicable machinery: Space is narrow, only long-distance installation of the place; Need to often fill the oil. But not easy to fill the oil; Stop after the place to fill the oil; Need to grease all the industrial bearings. | Application Industry: Automotive, cement, energy industry (thermal power, petrochemical) Chemical, food / beverage, dairy processing, mining Pulp and papermaking, mining, steel, public equipment |
